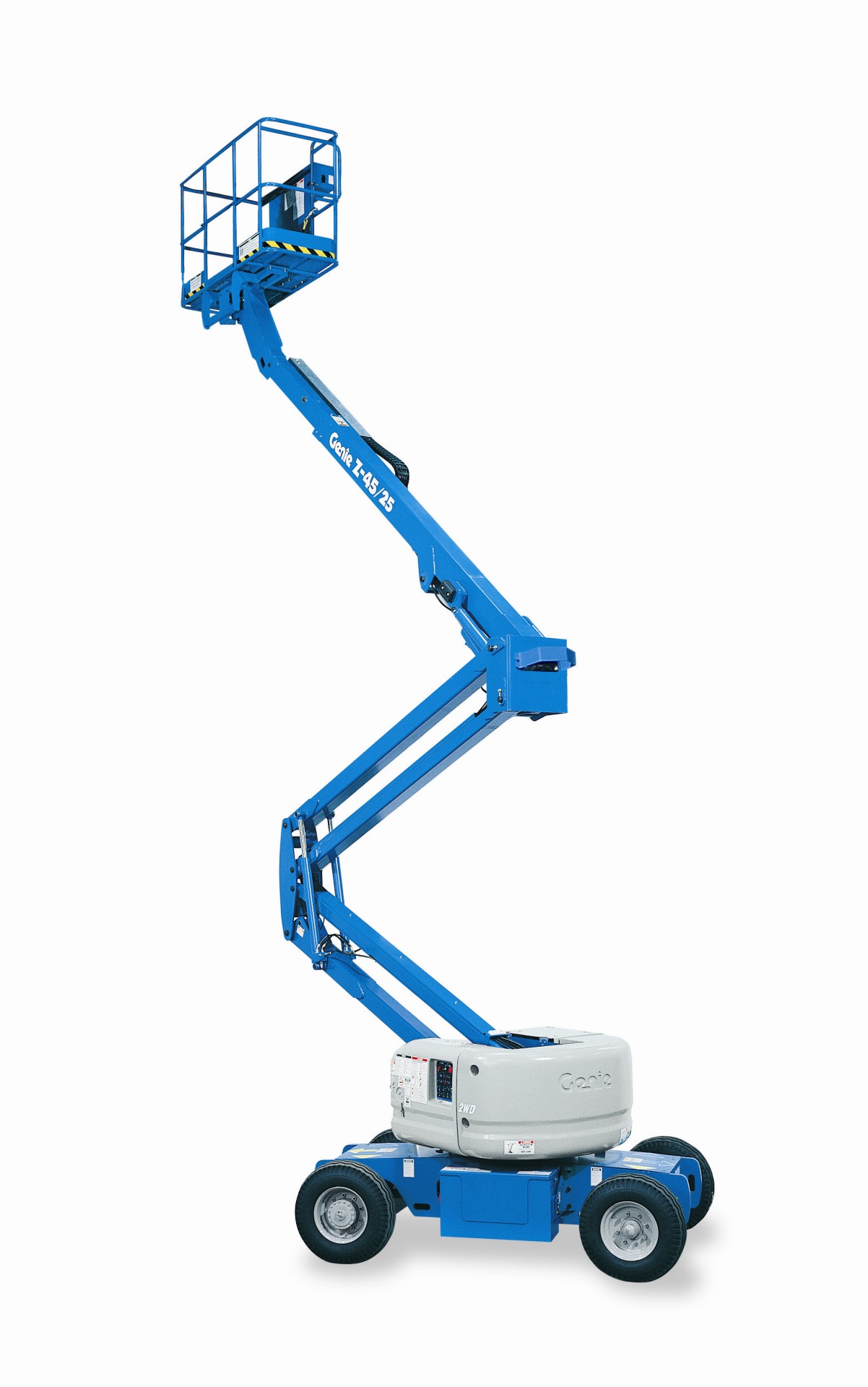

Genie® Z®-40/23N RJ Articulating Boom Lift
Maximum Reach in Minimum Space: The Ultimate Indoor and Congested Area Solution.
The Genie® Z®-40/23N RJ is a compact and versatile electric articulating boom lift designed to conquer the challenges of tight, congested worksites. Combining a narrow chassis with the precision of a rotating jib, this machine provides exceptional “up-and-over” positioning capabilities, making it the preferred choice for maintenance, installation, and construction tasks in factories, warehouses, airports, and shopping centers.
Key Features & Benefits
- Zero Tailswing & Narrow Design: With its 5 ft 11 in (1.80 m) width and zero tailswing, the Z-40/23N RJ maneuvers effortlessly through standard doorways and around obstacles in confined spaces where other lifts can’t go.
- Rotating Jib (RJ): The fully-functional, 180° rotating jib offers an extra dimension of control, allowing operators to position the platform with pinpoint accuracy for complex tasks.
- Quiet, Emission-Free Electric Power: The efficient 48V DC power system provides a full day of work on a single charge. Its zero-emission operation is ideal for indoor use and noise-sensitive environments.
- Exceptional Up-and-Over Reach: Delivers an impressive 22 ft 7 in (6.88 m) of up-and-over clearance, allowing operators to easily clear obstacles at height.
- Fully Proportional Controls: Ensures smooth, precise boom movements and platform positioning, enhancing operator comfort and productivity.
- Solid, Non-Marking Tires: Perfect for indoor applications, these tires protect finished flooring from scuffs and marks.
Specifications at a Glance
| Specification | Metric | Imperial |
|---|---|---|
| Max Working Height | 14.32 m | 46 ft 5 in |
| Max Platform Height | 12.32 m | 40 ft 5 in |
| Max Horizontal Reach | 6.91 m | 22 ft 8 in |
| Up & Over Clearance | 6.88 m | 22 ft 7 in |
| Lift Capacity | 227 kg | 500 lbs |
| Machine Width | 1.80 m | 5 ft 11 in |
| Machine Length (Stowed) | 6.83 m | 22 ft 5 in |
| Machine Height (Stowed) | 2.00 m | 6 ft 7 in |
| Weight | 6,940 kg | 15,300 lbs |
| Power Source | 48V DC (Eight 6 V 350 Ah batteries) | |
Ideal Applications
- Industrial and facility maintenance
- Electrical and mechanical installations
- Warehouse and distribution center operations
- Convention centers and event setup
- Retail and shopping mall maintenance
- General construction in congested areas
Elevate Your Fleet’s Performance
With its combination of compact design, powerful electric performance, and precise positioning, the Genie Z-40/23N RJ delivers an outstanding return on investment. Contact us today to learn more or to request a quote.
